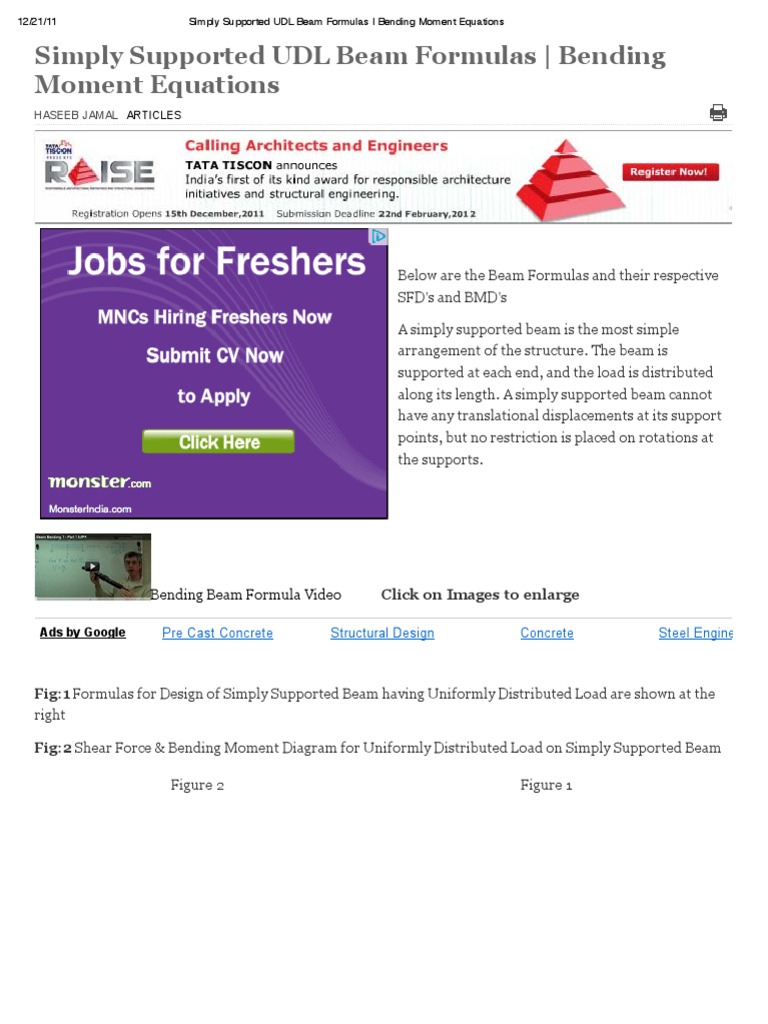

Draw sfd and bmd using the formula. How to find bending moment of uniformly varying load quora. Forces and stresses in beams. Shear force diagram (sfd) & bending moment diagram (bmd) form the basis for design of beams in general. .ends sfd and bmd at both ends 3/6 simply supported udl beam formulas written by haseeb monday, 12 july 2010 17:50 fig:11 fig:12 from theformulas sfd midspan and bmd for to calculating.
Propped Cantilever An Overview Sciencedirect Topics from ars.els-cdn.com Classification based on supports in engineering, beams are of several types: Stress and moment value and where it is located. Forces and stresses in beams. Axial force diagrams come additionally for column design. Bending moment diagram (bmd) shear force diagram (sfd) axial force diagram. Example on simply supported beam 7. Draw sfd and bmd for the single side overhanging beam subjected loading as shown below. What is bending moment formula?
By plotting the sfd and bmd you came to know what is the max.
Shear force bending moment 4. Classification based on supports in engineering, beams are of several types: Sfd (kn) bmd (knm) calculate the shear force and bending moment for the beam subjected to the loads as shown in the figure, then draw the shear force diagram (sfd) and bending moment diagram (bmd). Sfd & bmd for continuous beam. 1 nm = 1000 nmm. Draw sfd and bmd using the formula. Setting the bending diagrams of beam. 1 m = 1000 mm ; Uniformly distributed load uniform load partially distributed uniform load partially distributed at one end uniform load partially distributed at each end The above beam deflection and resultant force calculator is based on the provided equations and does not account for all mathematical and beam theory limitations. Its mode of deflection is primarily by bending. A r by 3 kn/m 4 m b m b by taking the moment at b: 1 n/mm = 1000 n/m ;
Draw sfd and bmd using the formula. 1 n/mm = 1000 n/m ; 1 nm = 1000 nmm. 1 lbf.ft = 12 lbf.in ; Below are the beam formulas and their respective sfd's and bmd's.
A Sketch The Deflected Shape Of The Cantilever Beam Chegg Com from media.cheggcdn.com Diagrammatic convention for supports roller supports hinge support fixed support link support fig. Uniformly distributed load uniform load partially distributed uniform load partially distributed at one end uniform load partially distributed at each end 3 kn/m 4 m a b example 8. 1 nm = 1000 nmm. Example on simply supported beam 7. 1 ft = 12 in ; Support conditions axial force, shear force and bending moment three forces are required to maintain internal equilibrium at every section of a beam. Bending moment formula for simply supported beam with uvl.
A simply supported beam cannot have any translational displacements at its support points, but no restriction is placed on.
Hoggingin this video, i have dis. Shear force diagram (sfd) & bending moment diagram (bmd) form the basis for design of beams in general. Use the portal method to calculate the corresponding Mark salient features like maximum positive, negative bending moments and shear forces, inflection points if any. Sfd & bmd for continuous beam. We can now calculate the reactions r b and r c, the bending moments m 1, m 2, m 3, m 4, and the shear forces v 1, v 2, v 3, v 4. Simply supported udl beam formulas | bending moment equations. Below are the beam formulas and their respective sfd's and bmd's. How to find bending moment of uniformly varying load quora. Will thus be a triangle having zero ordinate at a and wl at b. Below are the beam formulas and their respective sfd's and bmd's; Deflection at x, ∆ x: • determine reactions at supports.
Example on simply supported beam 7. E = modulus of elasticity, psi or mpa. Draw sfd and bmd using the formula. Use this beam span calculator to determine the reactions at the supports, draw the shear and moment. Jalal afsar october 29, 2014 sfd & bmd no comments in an overhanging beam, point of contraflexure is a point where bending moment changes it sign.
Why I Find The Shear Force Digram And Bending Moment Diagram Of A Beam Or Colume And What Is The Uses Of Sfd And Bmd In The Field Quora from qph.fs.quoracdn.net Draw sfd and bmd using the formula. 3 kn/m 4 m a b example 8. Axial force diagrams come additionally for column design. Shear force diagram (sfd) & bending moment diagram (bmd) form the basis for design of beams in general. The beam is supported at each end, and the load is distributed along its length. Bending moment formula for simply supported beam with uvl. Sfd and bmd, strength of material (som) a beam, simply supported beam : What is bending moment formula?
Calculate the reactions at the supports of a beam.
Uniformly distributed load uniform load partially distributed uniform load partially distributed at one end uniform load partially distributed at each end Classification based on supports in engineering, beams are of several types: Simply supported udl beam formulas | bending moment equations. Sfd & bmd for continuous beam. Hoggingin this video, i have dis. Plot sfd & bmd diagrams; E = modulus of elasticity, psi or mpa. A simply supported beam is the most simple arrangement of the structure. How to find bending moment of uniformly varying load quora. A point, where bending moment goes from positive to negative or from negative to positive. Calculate the reactions at the supports of a beam. 1 nm = 1000 nmm. Will, therefore, be rectangle of height w.
